Temporary Rumble Strips alert distracted drivers of an oncoming lane closure or work zone. Their use significantly reduces the number and impact of work zone intrusion accidents.
The RAPTOR rumble strip machines let the truck driver handle rumble strips from the safety of his cab. The driver does not have to leave the vehicle while safely deploying or collecting the rumble strips.
Different types of RAPTOR machines are in use on highways in France, the Netherlands, the USA and Switzerland. A total of more than 150 machines have been delivered to our happy customers by now (summer 2024).
Check out our RAPTOR palette to find the version best suited for your application.
The use of a high performance rumble strip is paramount in this application as shown in the video below.
Rumble strip testing

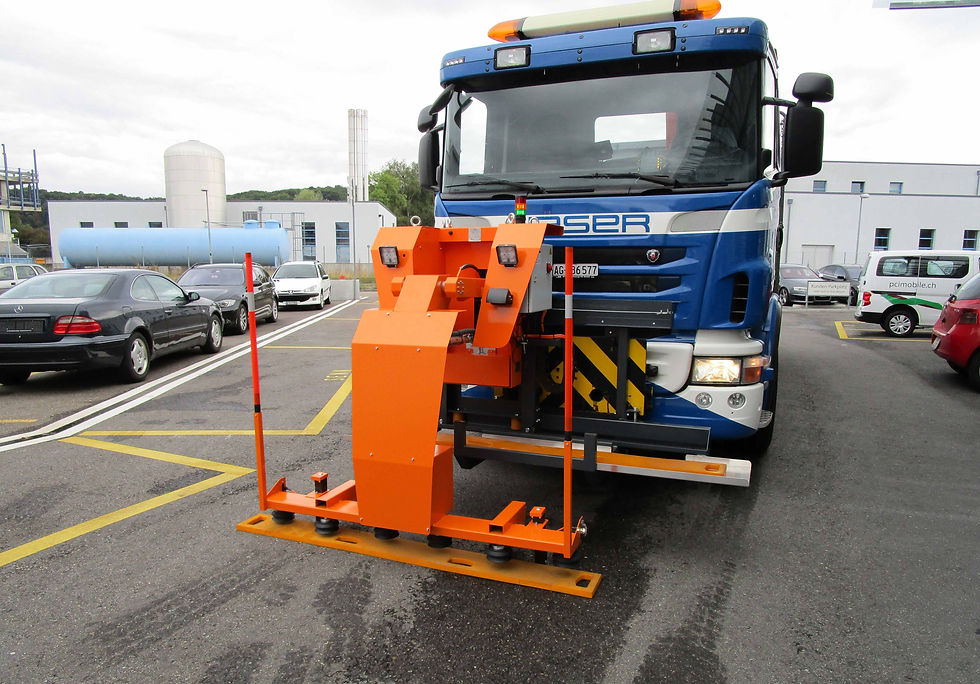

RAPTOR 2M is our most popular RAPTOR. It handles rumble strips of up
to 2.2 m length and can be easily mounted to the front plate of a truck.
Characteristics:
-
Max. Length of rumble strips: Approx. 2'200 mm.
-
Storage capacity: 9-12 strips, depending on strip type.
-
Very simple to control by wireless remote control.
-
Use of our patented magnet or vacuum gripper technology, depending on type of rumble strip.
-
Electro-hydraulic system is alimented by the truck by 12/24 VDC or by an on-board battery pack for autonomous operation.
-
Mechanical interface for installation on DIN EN 15432 plate. Other interfaces are feasible upon request.
-
Lateral drive +/- 500 mm.
-
LED-lights for night work.
-
Wireless remote control.
-
Wireless digital camera system to supervise the process.
-
Elegant & robust design.
-
Compact design: Only 1'000 mm overhang vs. DIN-Plate.
-
Weight: 690 kg without rumble strips.
-
Swiss Made by Senn Maschinenbau.
RAPTOR 3M is a variation of RAPTOR 2M. It can handle RoadQuake rumble strips of up to 3.3 m length. RAPTOR 2M and 3M are designed modular and can be retrofitted between each other.
Characteristics:
-
Max. Length of rumble strip: Approx. 2'200 mm.
-
Storage capacity: 12 Road Quake strips.
-
Very simple to control by wireless remote control.
-
Use of our patented magnet gripper technology.
-
Electro-hydraulic system is alimented by the truck by 12/24 VDC or by an on-board battery pack for autonomous operation.
-
Mechanical interface for installation on DIN EN 15432 plate. Other interfaces are feasible upon request.
-
Lateral drive +/- 500 mm.
-
LED-lights for night work.
-
Wireless remote control.
-
Wireless digital camera system to supervise the process.
-
Elegant & robust design.
-
Compact design: Only 1'000 mm overhang vs. DIN-Plate.
-
Weight: 770 kg without rumble strips.
-
Swiss Made by Senn Maschinenbau.
Distributors (Raptor):
Switzerland: FRIKE electronic AG
Germany: FRIKE electronic AG
Netherlands: EBO van Weel
Denmark: Terranor AB
USA & Canada: PSS Innovations
Manual handling of cones on high traffic roads is a laborious and dangerous task. The FALCON ACLM is a premium product for fully automated deployment and collection of traffic cones, increasing both road worker and road user safety.
Visit the FALCON-ACLM-website to learn more about this exciting product!
These lifting yokes are used for the handling of Jersey lock elements by cranes.
-
Max. loading capacity: 3'000 kg.
-
Powder-coated structural components.
-
RAL color of choice.
